• Model NO.：S10
• Fixed：Fixed
• Color：Mixed
• Certification：CE, ISO9001
• Customized：Customized
• Condition：New
• Material：Birch Wood, Plywood
• Drawer Box：Solid Wood Dovetail Construction
• Connection：Metal Clips
• Glide：Dtc 6 Soft Closed
• Hinge：Dtc 6 Ways Adjustable Soft Closed
• Box Outer Finish：UV Matching Coating with Door
• Box Interior Finish：Clear Finish or Matching Door
• Other Options for Door：Lacquer, Acrylic, Melamine
• Other Options for Box：Particle Board
• Transport Package：Kd(Flat-Packed) with Pallet
• Specification：customized
• Trademark：CABINEXT
• Origin：Fuzhou China
• HS Code：9403400090
• Production Capacity：120 X 40FT Containers

Basic Info.

Model NO. S10 Fixed Fixed Color Mixed Certification CE, ISO9001 Customized Customized Condition New Material Birch Wood, Plywood Drawer Box Solid Wood Dovetail Construction Connection Metal Clips Glide Dtc 6 Soft Closed Hinge Dtc 6 Ways Adjustable Soft Closed Box Outer Finish UV Matching Coating with Door Box Interior Finish Clear Finish or Matching Door Other Options for Door Lacquer, Acrylic, Melamine Other Options for Box Particle Board Transport Package Kd(Flat-Packed) with Pallet Specification customized Trademark CABINEXT Origin Fuzhou China HS Code 9403400090 Production Capacity 120 X 40FT Containers

Product Description

Face Frame Cabinet  Specification:


Component	Features
Door	Solid Russian birch, raised panel or shaker style as you require. Mortise and tenon joints.
Face frames	3/4" thick solid wood face frames with 1-1/2" wide stiles and rails
Tops, bottom and sides	1/2" thick 7-ply plywood sides/tops/bottoms with birch wood veneer, interiors are prefinished in clear UV coat and exteriors are finished in matching UV coat. Matching interior option is available.
Cabinets backs	1/4" thick plywood with 3" x 1/2" frame, interiors are prefinished in UV coat. 1/2" thick back is available in advantage cabinets.
Shelves	5/8" thick plywood, 1/2 depth, prefinished in UV coat. Full depth is available in advantage cabinets.
Drawer box	5/8" thick solid Russian birch, dovetail joints, 1/4" thick plywood bottom.
Toe kick	1/2" thick plywood, cover cabinets side.
Hinge	1. DTC 4 ways adjustable conceal hinges. 2. DTC soft closed 6 ways adjustable conceal hinges.
Glide	1. 3/4 extension white under mount glides, no soft closed 2. DTC full extension under mount soft closed glides.

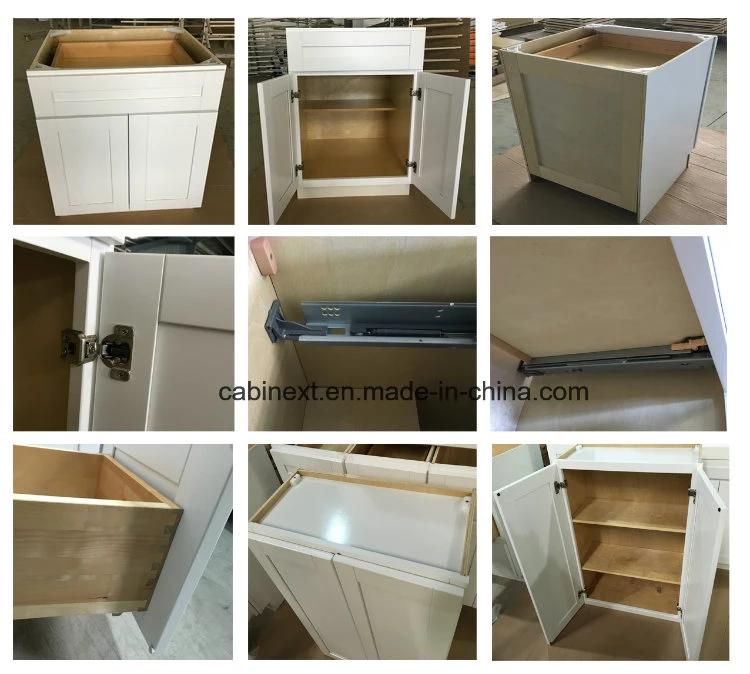

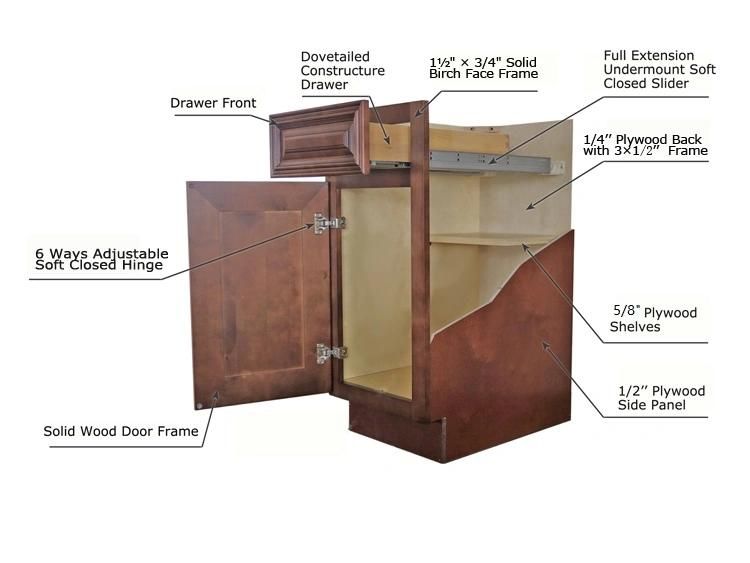

Face Frame Cabinet Constructure:




Frameless Cabinet  Specification:

Component	Feature
Door	Solid Russian birch, raised panel or shaker style as you require. Mortise and tenon joints.
Tops, bottom and sides	3/4" thick plywood sides/tops/bottoms with birch wood veneer, interiors are prefinished in clear UV coat and exteriors are finished in matching UV coat. Matching interior option is available.
Cabinets backs	1/4" thick plywood, interiors are prefinished in UV coat. 1/2" thick backs is available in advantage cabinets.
Shelves	3/4" thick plywood, 3/4 depth, prefinished in UV coat. Full depth is available in advantage cabinets.
Drawer box	5/8" thick solid Russian birch, dovetail joints, 1/4" thick plywood bottom.
Hinge	1. DTC 4 ways adjustable conceal hinges. 2. DTC soft closed 6 ways adjustable conceal hinges.
Glide	1. DTC full extension side mount glides, no soft closed 2. DTC full extension under mount soft closed glides.

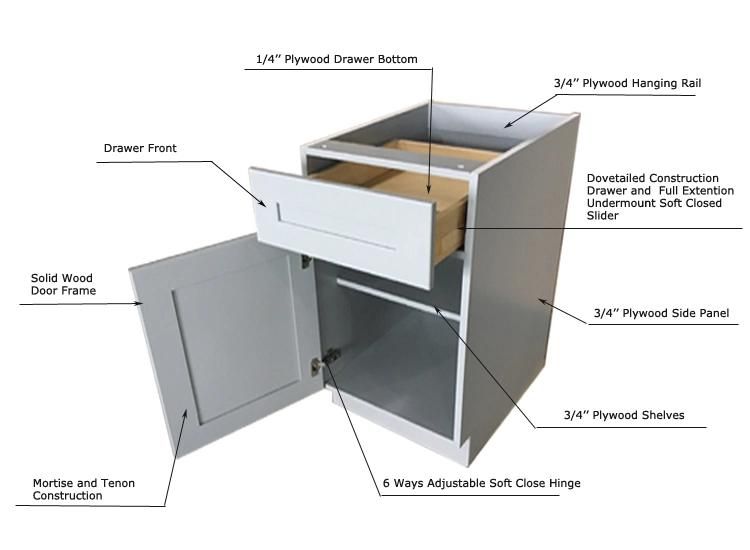

Frameless Cabinet  Construction:

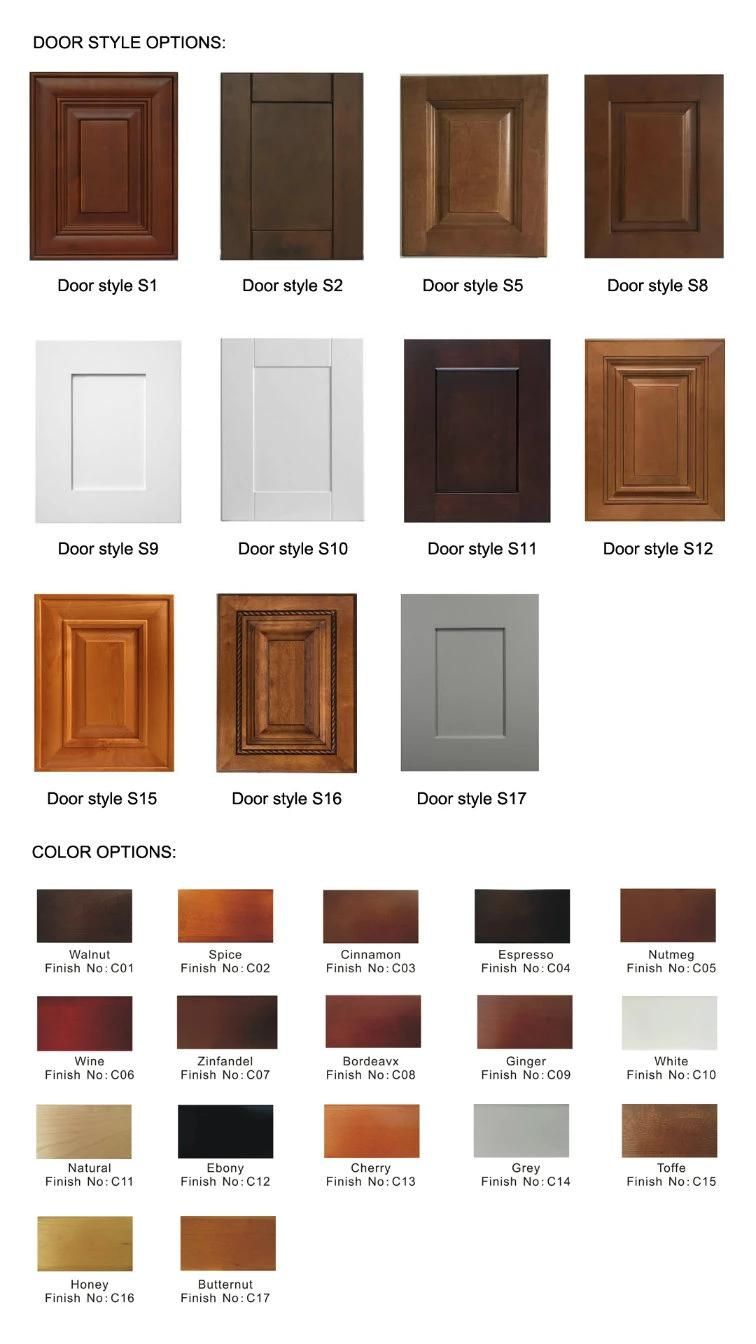

Option Doors:

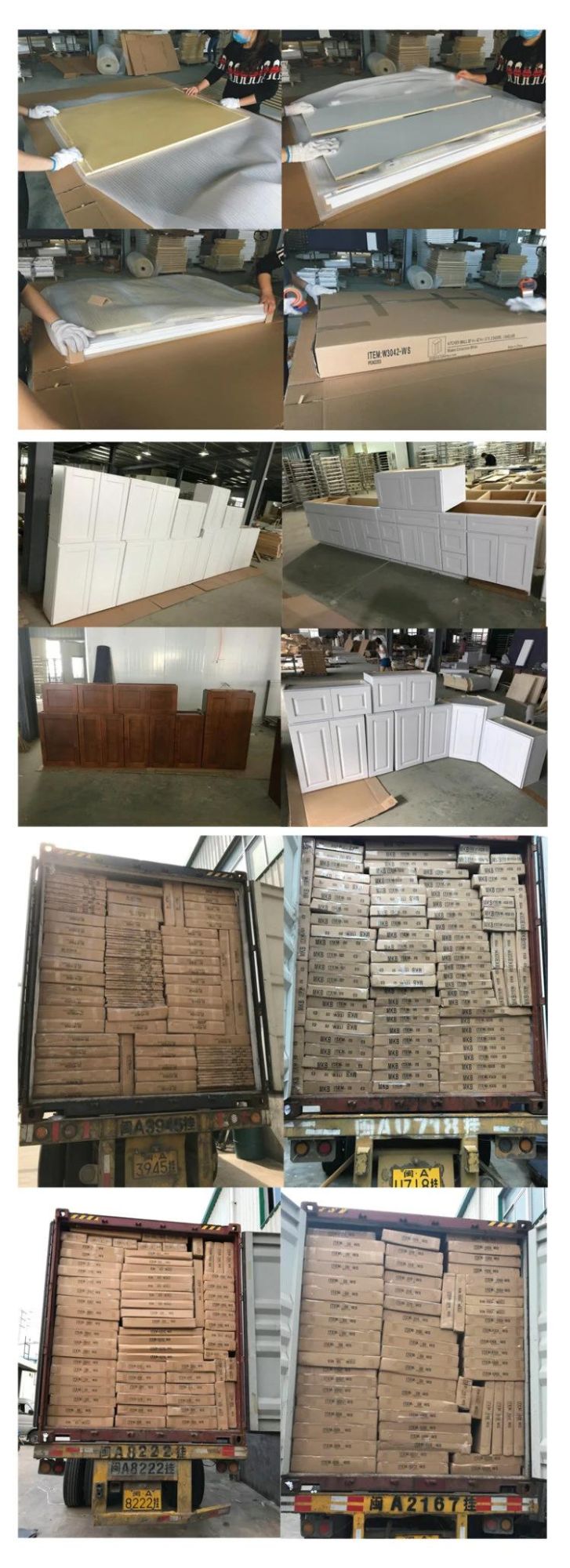

Packing and loading





Our Services:

 - OEM/ODM services are available

 -  Professional salesman's service on your doubts

 -  Prompt reply within 24 hours

 -   Free samples provided

 -   Excellent quality control system



FAQ



Q1. Are you trade company or factory?

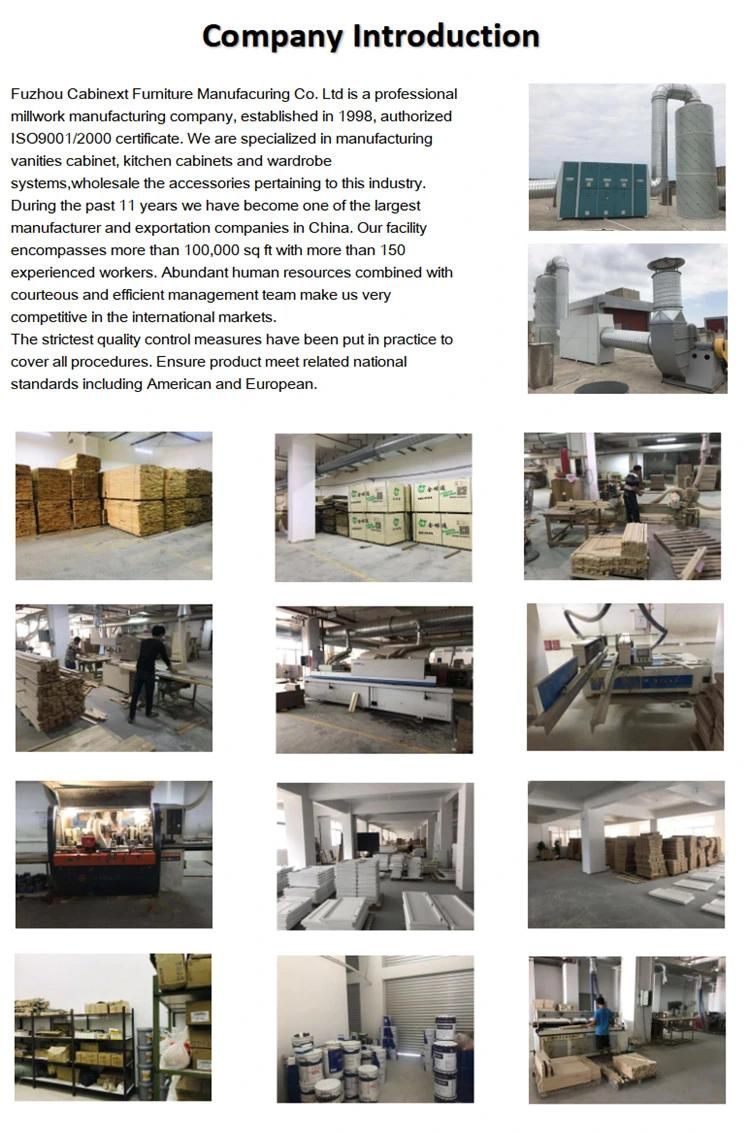

A: We are factory located in Fujian Province with 11 years experience.


Q2: What the main products in your company?

A: Our main products are:

 Frame kitchen cabinets , Frameless kitchen cabinets and Bathroom vanity cabinets

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4. How long can you delivery products?

A:Normally production period depends on order quantity, usually, it is about 40 working days after receiving deposit.


Q5. What is your payment terms?

A: T/T30% deposit before production and 70% balance  against the copy of B/L or LC at Sight.
